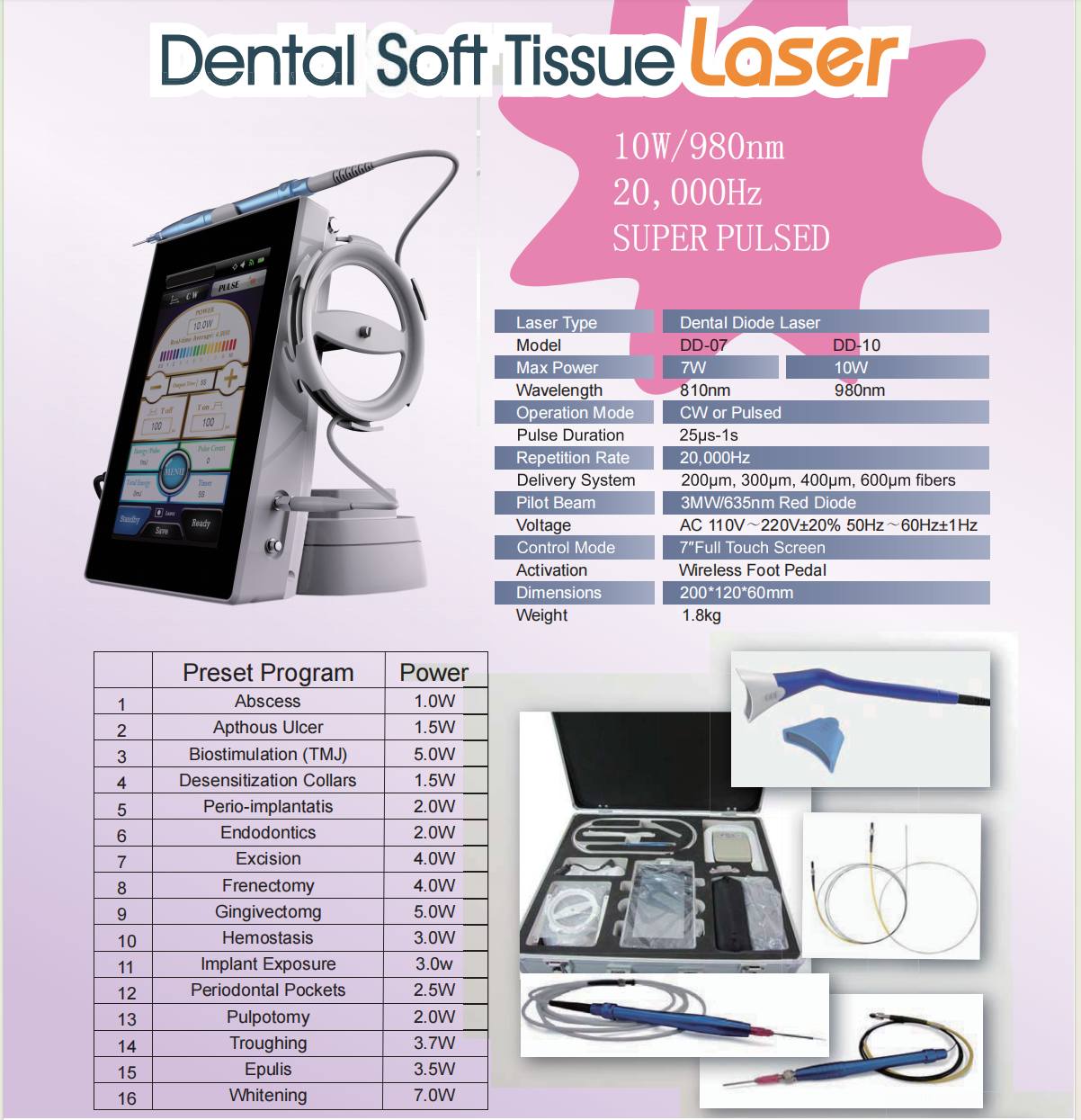

DD-07/10 Diode Laser System

7W/810nm 10W/980nm Superpulsed up to 20,000Hz

◆"HOLD"& "NON-HOLD" options to activate laser emission
◆7" Full Touch Screen
◆Real-Time Average Power
◆16 Presets & 5 extra customizable settings
◆Software in three languages, optional from English, French, German, Spanish, Italian, Polish
0086 13918734959
Detail


Specifications
Laser TypeDiode Laser
ModelDD-07DD-10
Max Power(CW)7W10W
Wavelength810nm980nm
Operation ModeContinuous or Pulsed
Pulse Duration25μs-1s
Repetition Rate20,000Hz
Delivery System200um,300μm,400μm,600um,fibers
Aiming BeamLaser Diode at 3mW/635nm
VoltageAC 110V-220V±20%,50/60Hz±1Hz
Control Mode7"Full Touch Screen
ActivationWireless Foot Pedal
Dimensions200*120*60mm
Weight1.8kg
